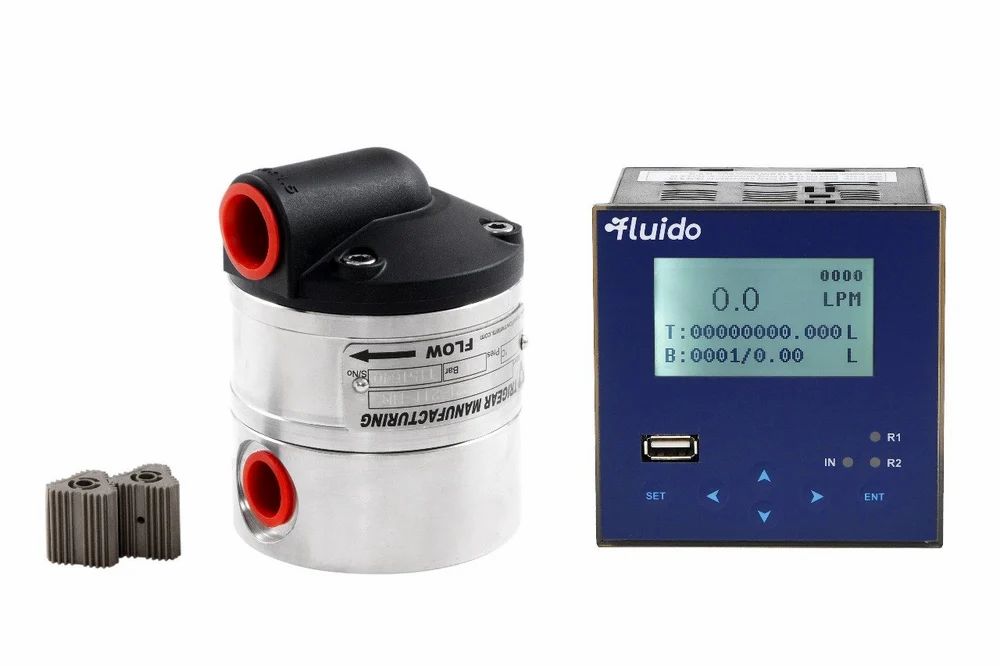

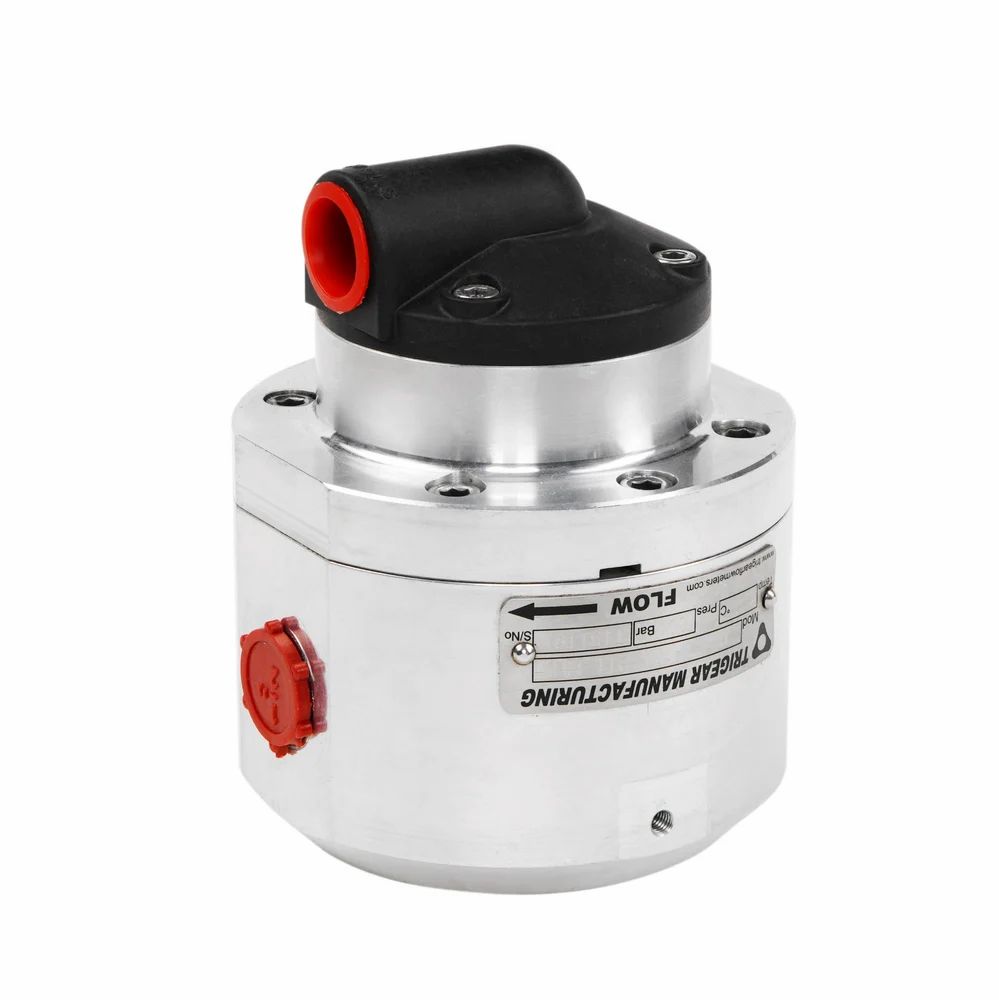

TG020 Tri Gear Flow Meter is a precision tri-gear positive displacement flow meter from FluidoSense engineered for accurate measurement of viscous liquids, oils, fuels and chemicals with superior accuracy and repeatability.
Engineered for accuracy and durability, our tg020 tri gear flow meter is manufactured under strict ISO quality standards. Tri-gear technology offers superior performance over oval gear designs with less slippage and quieter operation.
Versatile tri-gear flow measurement across industries
Engineered specifications and advantages that set this product apart in demanding applications.
40 mm
2 L/ min
±0.5%
4–20 mA, Pulse
Three-gear positive displacement principle
Superior accuracy vs. oval gear designs
Less slippage and quieter operation
Made in India by FluidoSense
| Fluid Type | Oil, Petrol, Lube Oil, Fuel Oil, Diesel |
| Line Size | 40 mm |
| Flow Range | 2 L/ min |
| Accuracy | ±0.5% |
| Body Material | Aluminium |
| End Connection | Threaded |
| Model Name/Number | TG020 |
| Output Signal | 4–20 mA, Pulse |
| Capacity Group | Medium Capacity |
| Nominal Size | 25 mm |
| Accuracy @ 3cp | +- 0.25% Of Reading |
| Repeatability | Typically +- 0.01% Of Reading |
| Temperature Range | -20 Degree C ~ +120 Degree C |
| Reed Switch output | 30Vdc x 200mA max. |
TG020 Tri Gear Flow Meter is a precision tri-gear positive displacement flow meter from FluidoSense engineered for accurate measurement of viscous liquids, oils, fuels and chemicals with superior accuracy and repeatability.
Tri-gear flow meters use three gears instead of two, offering superior accuracy and repeatability with less slippage. They operate more quietly and smoothly than oval gear meters, making them a better choice for batching, high-viscosity fluids and precision applications.
All FluidoSense tri-gear flow meters come with a standard 12-month warranty against manufacturing defects. Calibration certificates are provided with every unit.
Tri-gear meters are ideal for petroleum products, oils, chemicals, fuels, hydraulic fluids and other clean viscous liquids. Specific suitability depends on material and seal compatibility.
