FS50 Oval Gear Flow Meter

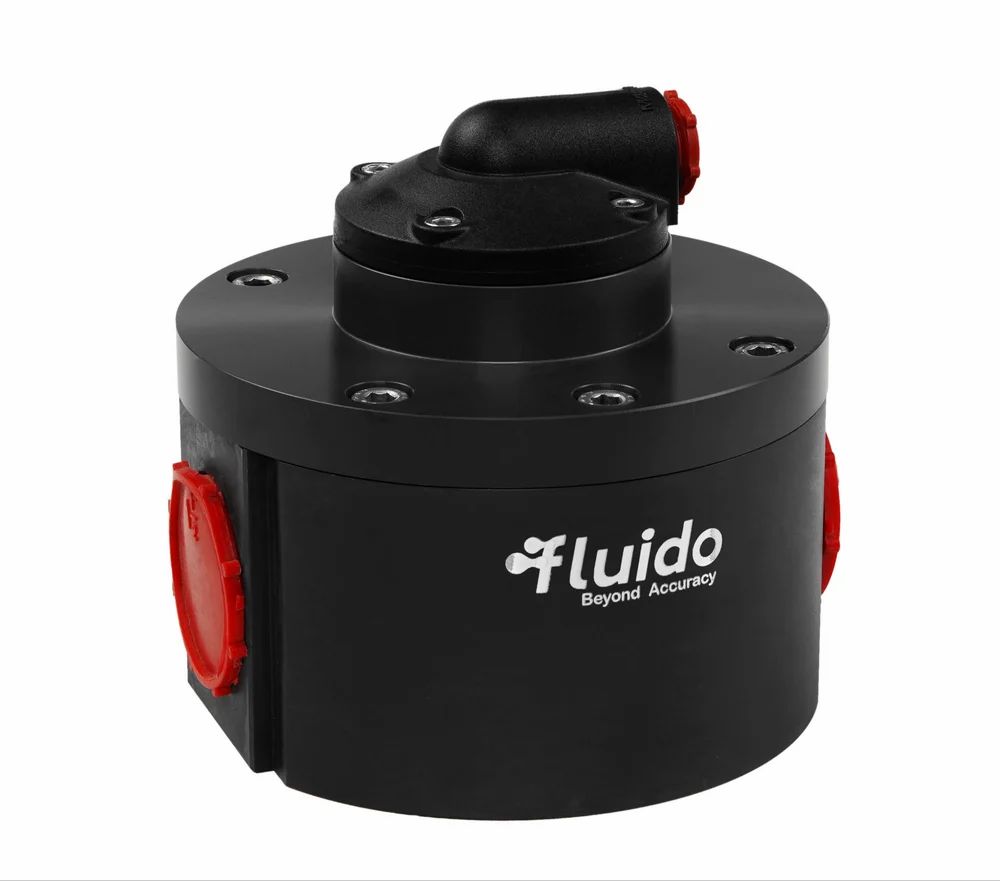

FS50 Oval Gear Flow Meter view 1

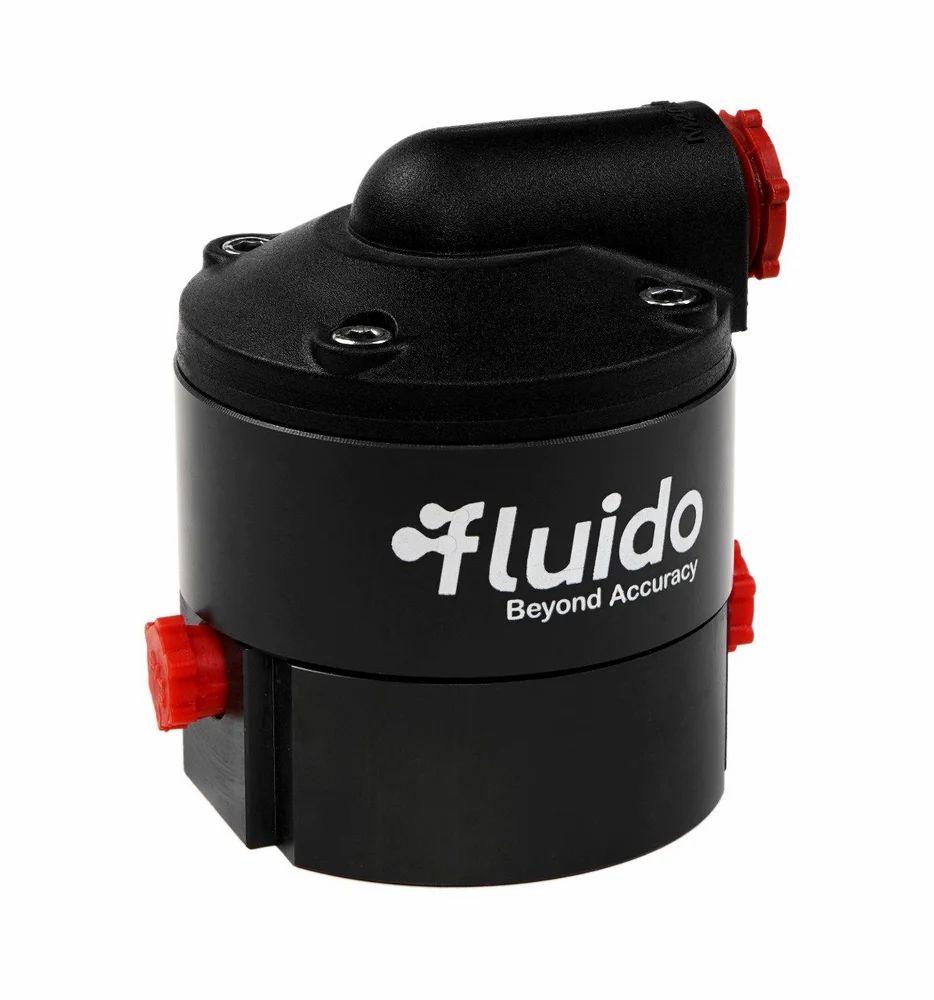

FS50 Oval Gear Flow Meter view 2

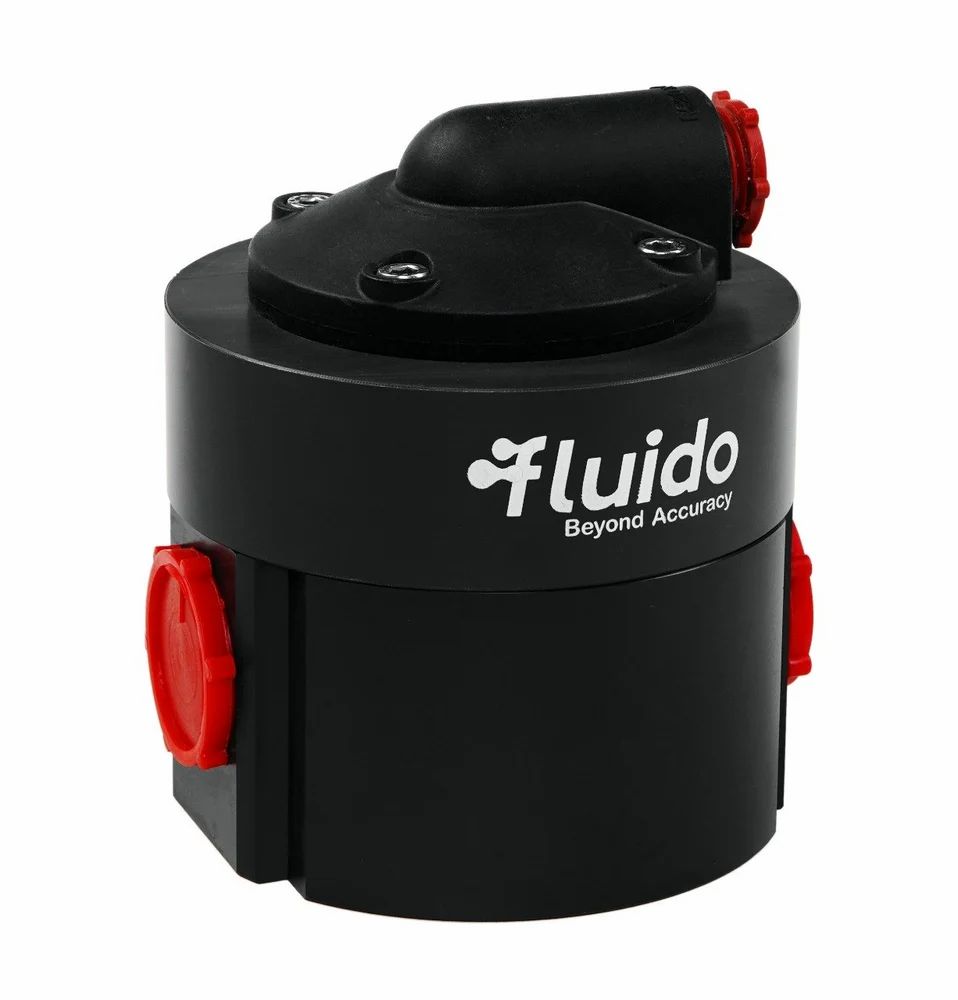

FS50 Oval Gear Flow Meter view 3

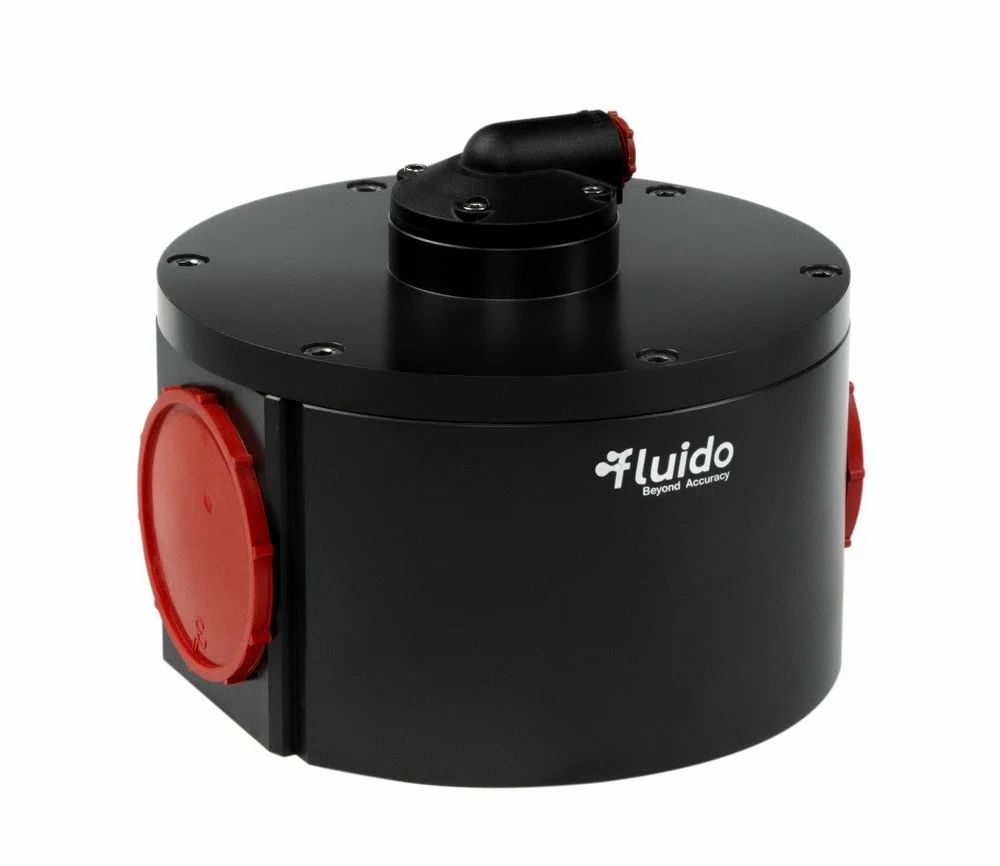

FS50 Oval Gear Flow Meter view 4

Product Overview

FS50 Oval Gear Flow Meter is a precision positive displacement flow meter from FluidoSense engineered for industrial applications. Built on the proven oval gear principle for accurate measurement of viscous liquids, oils and chemicals.

FluidoSense Advantage

Engineered for accuracy and durability, our fs50 oval gear flow meter is manufactured under strict ISO quality standards. Each unit is calibrated and tested to deliver consistent performance across demanding viscous liquid measurement applications.

Inquiry Now

Areas of Application

Versatile oval gear flow measurement across industries

Petrol
Oil
Lube Oil
Diesel
Fuel Oil
Chemicals

Key Features & Benefits

Engineered specifications and advantages that set this product apart in demanding applications.

FS50 Oval Gear Flow Meter Features
Line Size

100 mm

Flow Range

600 - 20000 L/H

Accuracy

+/- 1 % of Reading +/- 0.5% of Reading (10:1 turndown)

Display Type

Digital

Output Signal

4–20 mA, Pulse

Protection class

IP66/67

Positive displacement oval gear principle

High accuracy and repeatability

ISO certified manufacturing standards

Made in India by FluidoSense

Fluid Type Petrol, Oil, Lube Oil, Diesel, Fuel Oil, Chemicals
Line Size 100 mm
Flow Range 600 - 20000 L/H
Accuracy +/- 1 % of Reading +/- 0.5% of Reading (10:1 turndown)
Body Material Aluminium
End Connection Threaded
Model Name/Number FS50
Display Type Digital
Output Signal 4–20 mA, Pulse
Capacity Group High
Normal Size 2"
Repeatibility Typically 0.01% of reading
Temperature Range 200C to 850 C (for Aluminium body) -200 C to 1200 C (for SS. Body) refer factory for lower and higher temperature ranges
Noise 75 db
Pulse 10 pulse /litter
Aluminium Meters 25 bar
SS 316 meters 200 bar
High Pressure Model Refer Factory
Output Hall Effect NPN/PNP Pulse
Optional outputs 4-20 mA, 485 Modbus communication
Protection class IP66/67
Noise generation 75 db
Dimensions Refer datasheet

  • ISO certified manufacturing facility in Gandhinagar, Gujarat
  • Each unit calibrated and tested before dispatch
  • Custom configurations available for OEM requirements
  • Pan-India delivery and on-site installation support
  • Comprehensive warranty and after-sales service

  • Install in horizontal or vertical pipeline as per flow direction arrow
  • Provide upstream strainer to prevent particulate damage to gears
  • Maintain stable mounting to avoid vibration-induced errors
  • Use proper electrical grounding and shielded signal cables
  • Refer to product manual for complete commissioning steps

Frequently Asked Questions

FS50 Oval Gear Flow Meter is a precision positive displacement flow meter from FluidoSense engineered for industrial applications. Built on the proven oval gear principle for accurate measurement of viscous liquids, oils and chemicals.

Oval gear flow meters work on the positive displacement principle. Liquid passes into the measuring chamber and displaces two oval gears. Each rotation corresponds to a fixed unit volume. Reed or Hall Effect sensors detect the rotation and generate pulses proportional to flow rate.

All FluidoSense oval gear flow meters come with a standard 12-month warranty against manufacturing defects. Calibration certificates are provided with every unit.

Oval gear meters are ideal for viscous, non-abrasive clean liquids such as petroleum products, oils, chemicals, grease, fuels and pastes. Specific suitability depends on material and seal compatibility.
